Flexible Printed Circuit Single sided

The single-layer copper foil is laminated with the cover film. The advantage is the copper foil is able to be soldered or connected with the connector. The irregular appearance is designed according to the internal space design of the product.​
Model : Flexible Printed Circuit Single sided

FPC features in light, thin, flexible, anti-interference, low electricity resistance etc.  Our capacity: single sided, double sided, multi-layers, rigid-flex etc.  Special assembly: Ferrite lamination, SMT assembly, silicon rubber keypad assembly. FPC can be applied to wearable device, 3C products, headlight, timer, LCD, etc.

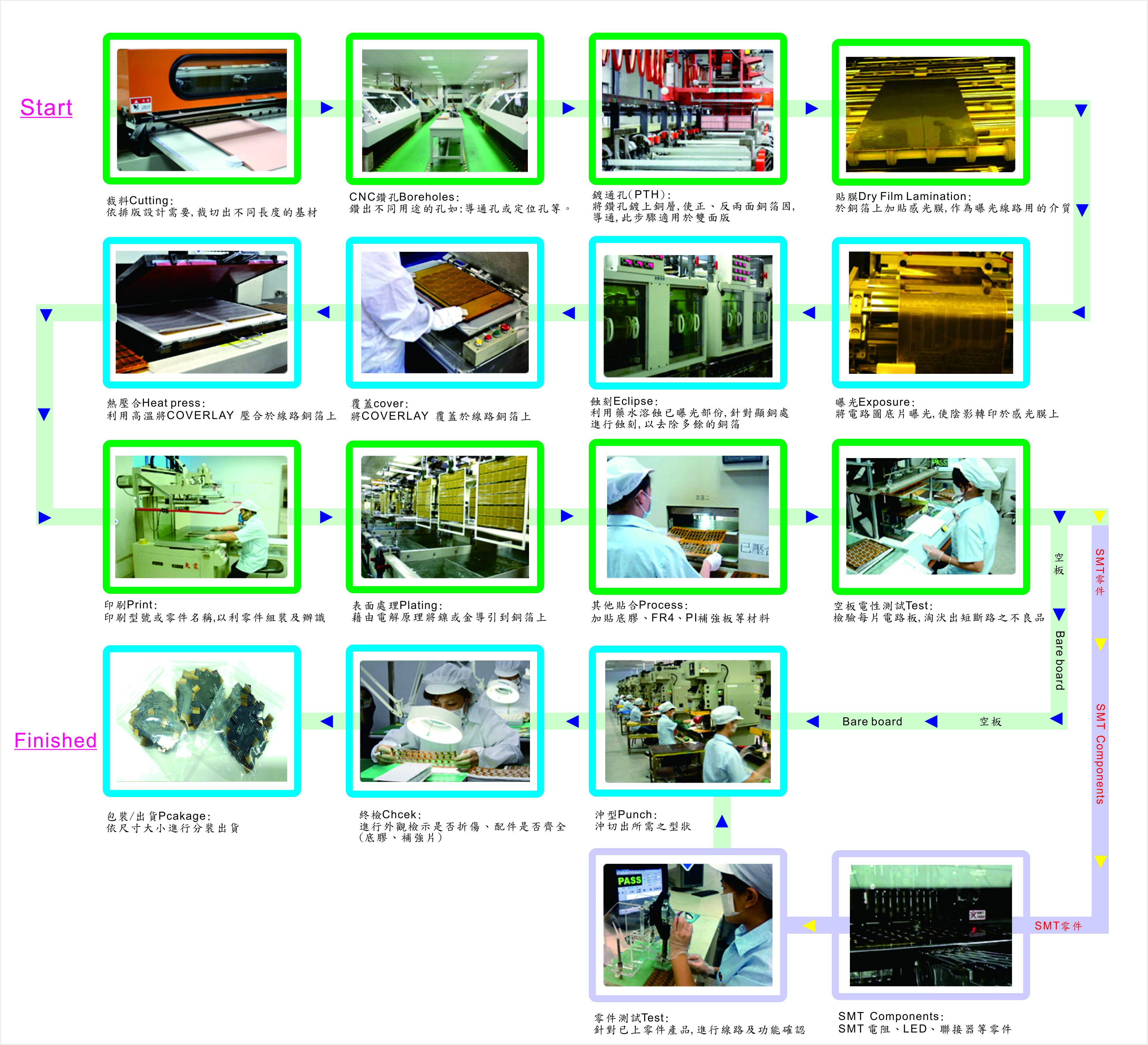

Production SOP

Flexible Printed Circuit Single sided


Base material

PI (Polyimide)

Thickness of base copper

18µm/35µm (standard thickness)

Largest size

Single Sided-550mmx250mm

Double Sided-500mmx250mm

Min. hole diameter of drilling

ø0.15mm/ 6mil

Min. hole diameter of punching

ø0.5mm/ 20mil

Min. Trace width / Min. Space

0.075mm (3mil)

Peeling strength

1.0kg.f /cm

Multi-layers

Up to 4 layers

Passive Component

Min. 0201

Connector

Min. Pitch0.3mm

Stiffener

PI (Polyimide), PET (Polyester), FR4, Metal

Solder heat Temp

PI (Polyimide) 280°C / 10sec

Surface Treatment

Gold platingNi:1um~4um + Au:0.05um~0.1um

Immersion GoldNi:1um~4um + Au:0.03um~0.09um

OSP

Immersion Tin2µ" ~ 40µ"

Tin Plating200µ"~1000µ"

Dimension Tolerances

Conductor Width±0.03mm~±0.05mm

Outline Dimension±0.1mm~±0.03mm

Apply Coverlay Tolerance±0.3~0.5mm

Hole Diameter±0.1mm

Finish products testing

ICT (In Circuit Test): proceed testing for SMT components to make sure the components locations are correct.

FCT (Function Test): proceed testing after SMT, but need customer provide us the fixture or machine.
